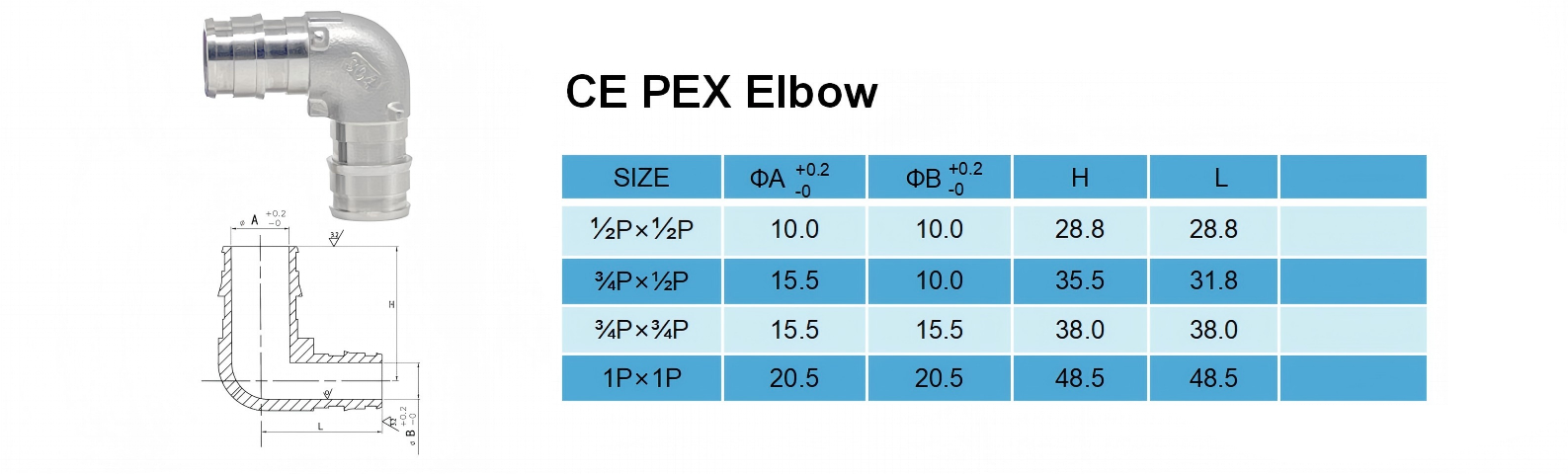

PEX Elbow 90°
| Name | Stainless Steel PEX 90° Elbow |
| Standard | ASTM F1960 |
| Size | 1/2''×1/2'' P3/4''×1/2'' P3/4''×3/4'' P
1''×1'' P |
| Material | Stainless steel 304/316/CF8/CF8M/1.4308/1.4415 |
| Main Type | Coupling, Male & Female Adapter, 90° Elbow, Drop Ear Elbow, Male Elbow，Tee, Plug, Ball Valve |
| Specifications | For use with ASTM F2769 (PE-RT) or SDR9 pipe |
| For use with ASTM F876 or F3253 PEX pipe | |
| Compatible with | PEX-A |
| Connection Type | Cold Expansion |
| Thread | BS21 (BSPT and BSPP), ANSI/ASME B1.20.1 (NPT), DIN2999 (R/RP), JIS B O203/2 (PT), etc. |
| Temperature Range | Up to 400°F (204°C) |
| Pressure | 200PSI |
| Application | 1. Residential plumbing 2. Radiant heating systems 3. Portable water supply systems 4. Commercial and industrial plumbing 5. Snowmelt prevention and ice dam systems 6. Water filtration systems 7. Irrigation systems 8. Radiant cooling systems 9. Heating systems |
| Certificate | cUPC Listed, NSF/ANSI 61 & 372 Certified,No Lead,etc. |
| Package | Plastic bags, bubble bags, cartons, wooden pallets, wooden boxes |
| OEM & ODM | Customizable according to your design, photos or drawings |
| Sample | Free samples available with freight collected |
| Payment terms | 30% prepayment (T/T), the balance is subject to B/L or L/C. |
| After-Sales service | Free replacement if any quality issues |
| Lead time | Usually no more than 30 days, depending on your quantity |
| Delivery terms | Exw, FOB, CFR, CIF, DDP and other delivery terms available |
Advantages
* Premium Quality and Durable:Plastic fittings lack strength and have limited flow, while brass is more susceptible to corrosion - the high-end 304/316 stainless steel construction of our press-fit PEX fittings offers the best of both worlds.
* Has High Corrosion Resistance :Stainless steel is highly chemically resistant and safe for use in drinking water systems, making it ideal for areas with high acidity and anywhere water quality is an issue.
* More Versatility：These fittings can be used in almost any application where PEX tubing is used.
* Competitive Price: Source factory, only wholesale, price is our advantage.
Our listings contain the most common or recommended product selections. If you do not see a Product, Option, or need parts, please contact us and we will be glad to help you.
