Online Exporter Ss 3 Way Ball Valve - Mini ball valve – Kaixuan Detail:
We supply a range of Stainless Steel Mini Ball Valves
Mini Ball Valves FM (female-male)
Mini Ball Valves FF (female-female)

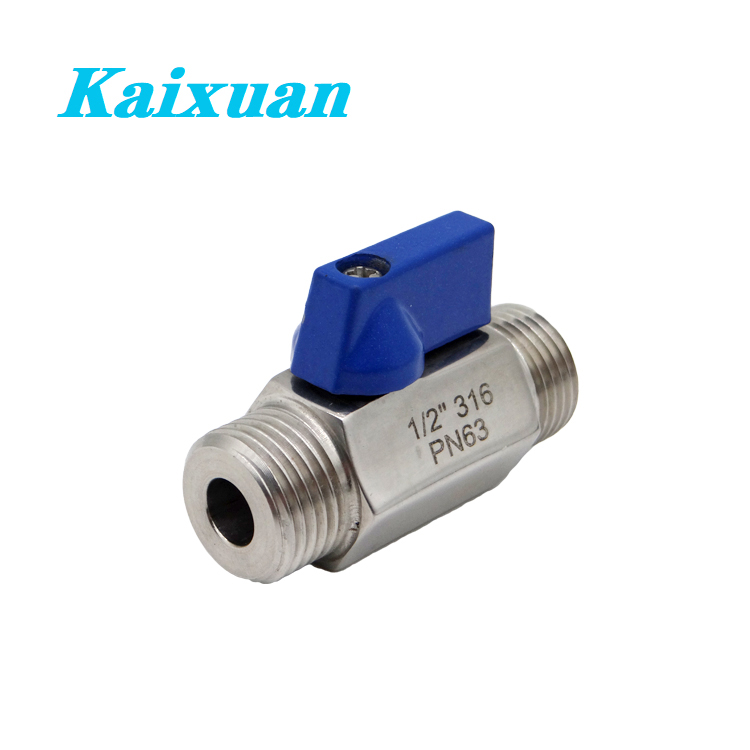

Mini Ball Valves MM (male-male)
KX offers varying sizes of Mini Ball Valve. These mini ball valves are made from high-quality stainless steel (SS304/316) and has a blow-out proof stem to reduce leakage and valve damage. This standard port inline valve has female/male threads for connecting two female/male threaded pipes going in the same direction.
SS304 grade of stainless steel contains high nickel content that ranges from 8-10.5% by weight and a high amount of chromium that ranges from 18-20% by weight. These feature excellent corrosion resistance thanks to high amounts of chromium and nickel in the construction of stainless steel mini ball valves.
This mini ball valve at a maximum operating temperature of 325 degrees F, and is suitable for use in air, water or inert gas applications.
Stainless Steel Mini Ball Valves (or miniature ball valves) are made for use in confined spaces. With a pressure rating of 1,000 PSI (water, oil or gas). The valves are available in Female to Female( FxF), Male to Female (MxF), and Male to Male (MxM) connection types, and finally come in sizes from 1/4″ to 1″.
Advantages
Compact and Easy to use
Ideal for Low-Flow applications where a high quality valves is required
Each valve individually tested for maximum safety
Application
Stainless Steel Mini Ball Valve is ideal for small, confined spaces, where larger valves are unsuitable. The 316SS and PTFE wetted materials are excellent for applications with corrosive media.
Material list
Body – SS 316/ SS 304
Ball – SS 316/ SS 304
Bonnet – SS 316/ SS 304
Ball Seat – PTFE/RPTFE
Valve Stem – SS 304/ SS 316
Screw – SS 304
O-Ring – NBR/Viton
Double seal system allows for flow can go in either direction
Heavy duty Zinc Alloy handles (painted blue)
Fast 1/4 turn open or closed operation
Our listings contain the most common or recommended product selections. If you do not see a Product, Option, or need parts, please contact us and we will be glad to help you.

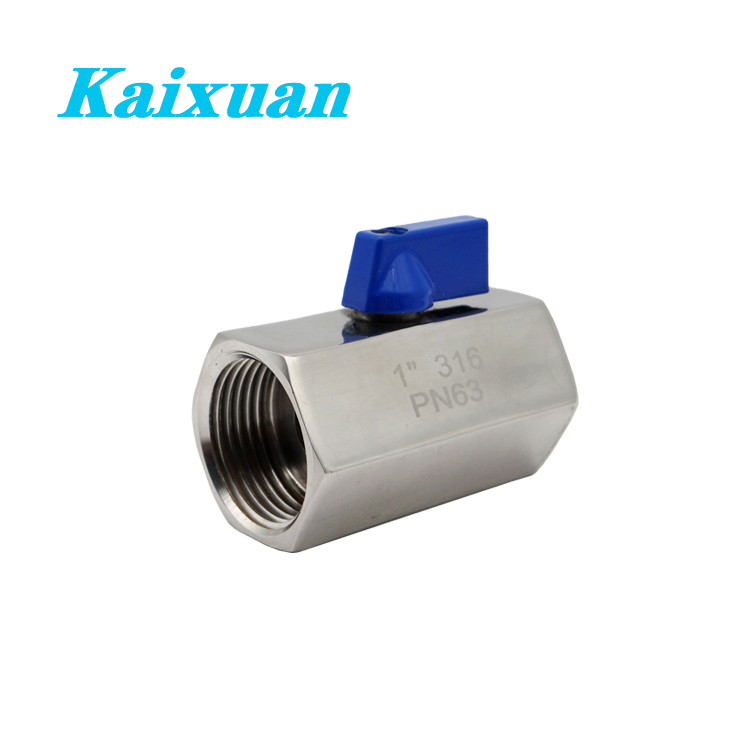

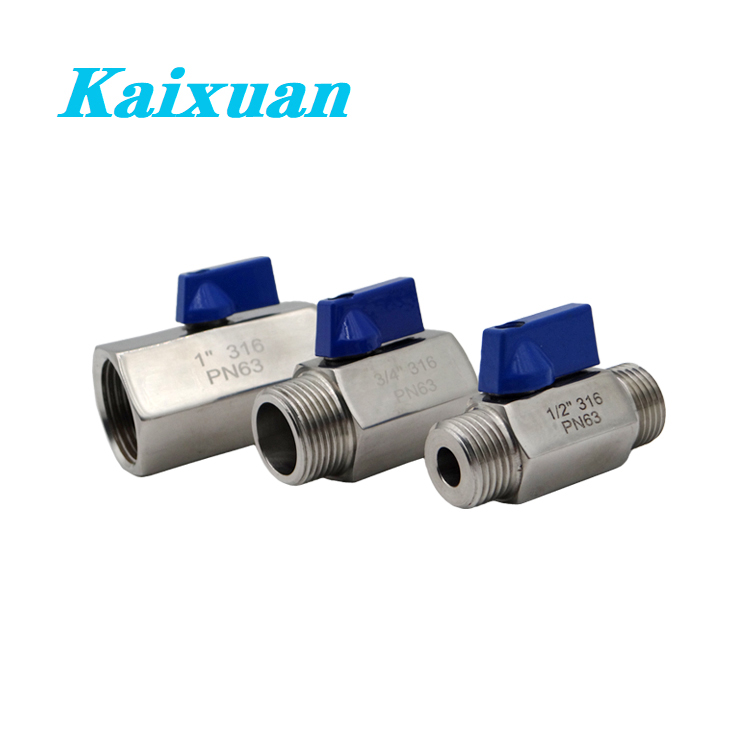

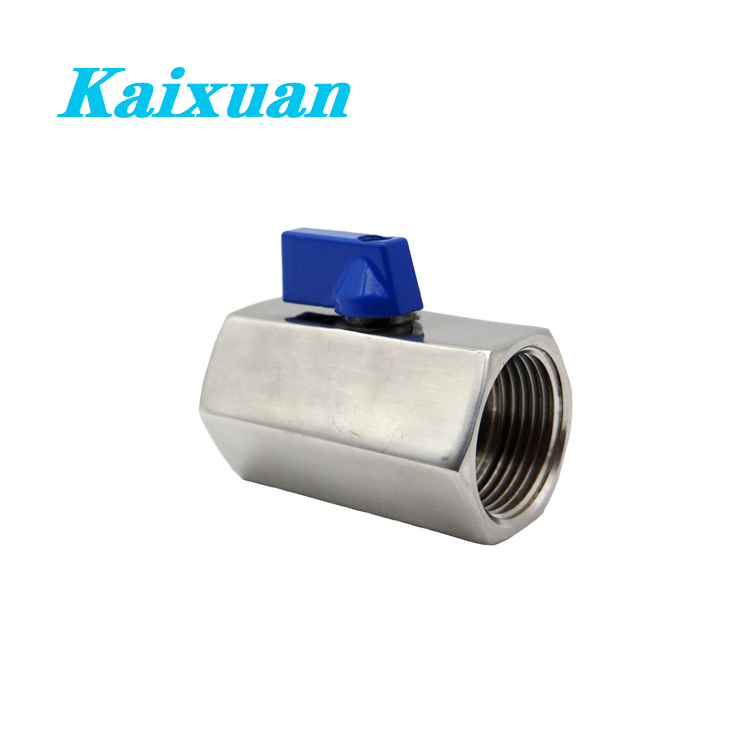

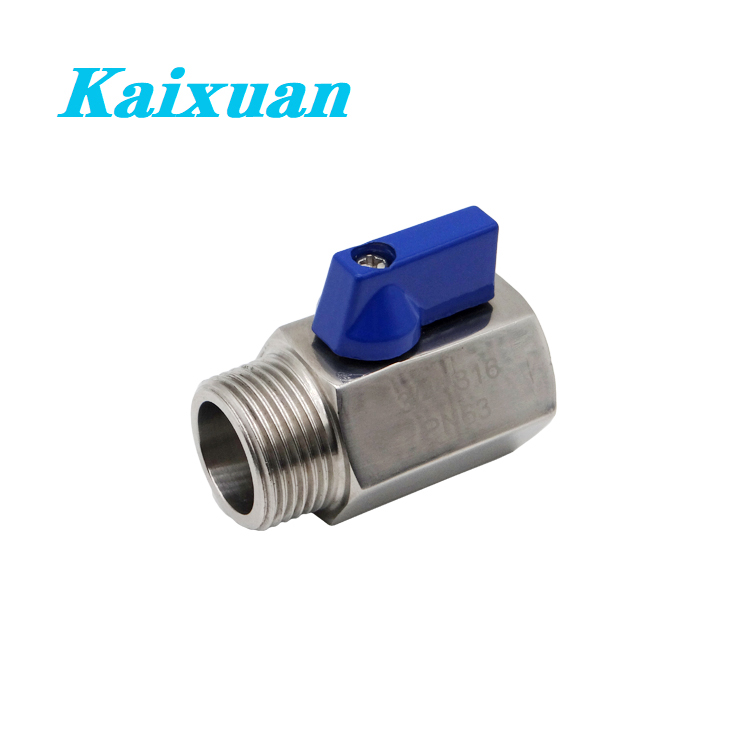

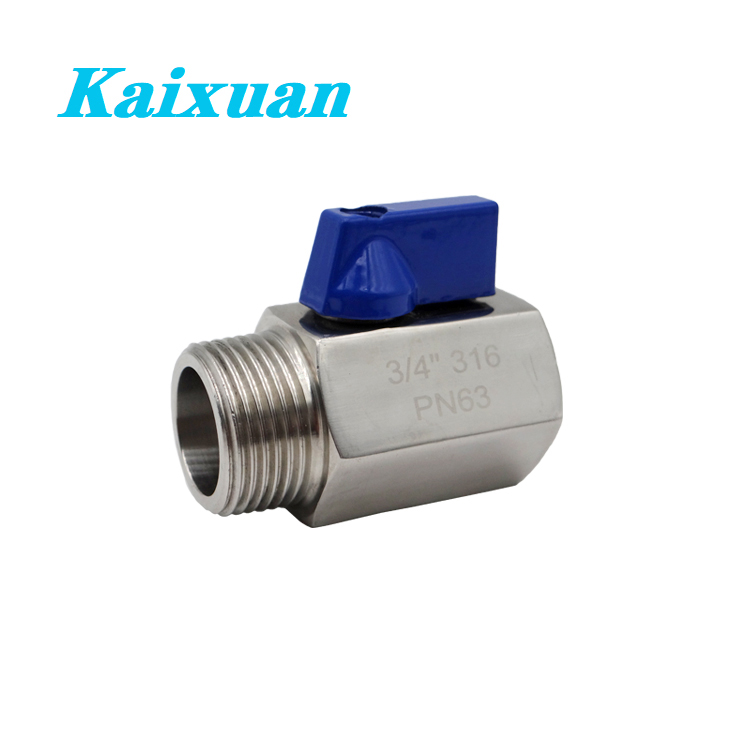

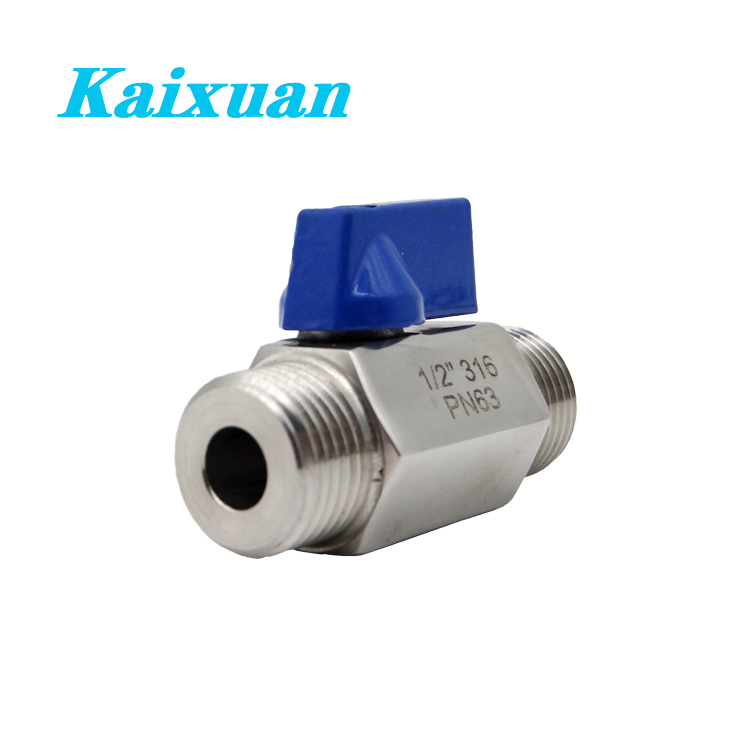

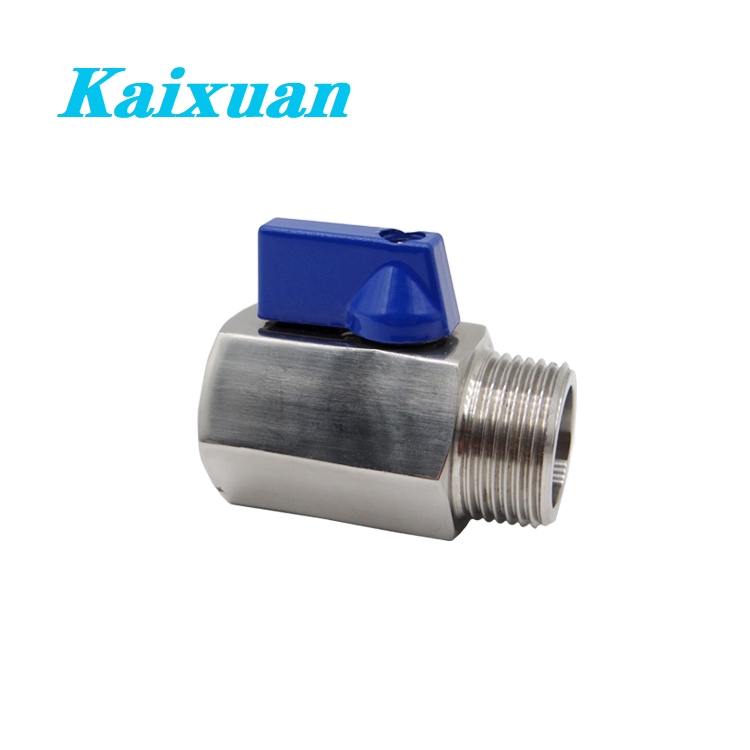

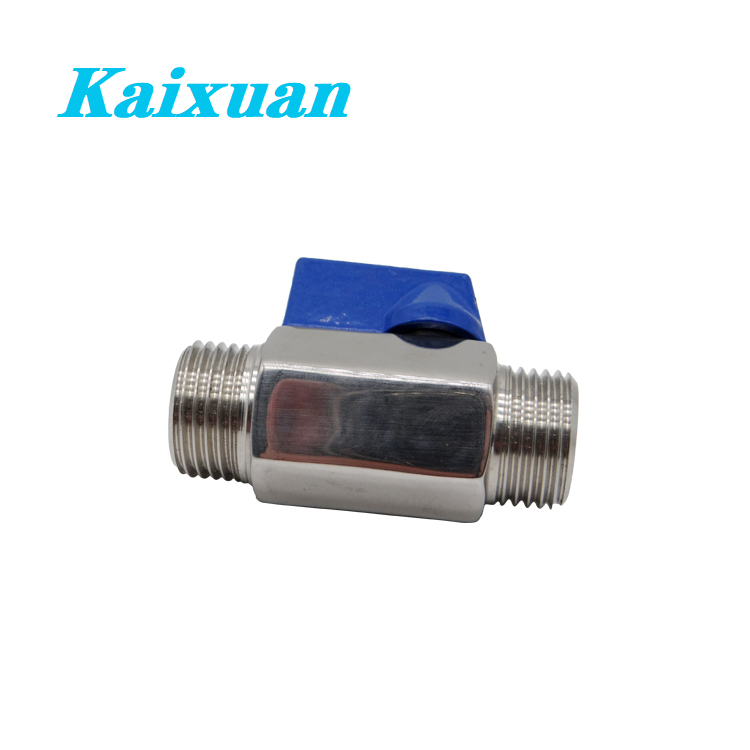

Product detail pictures:
