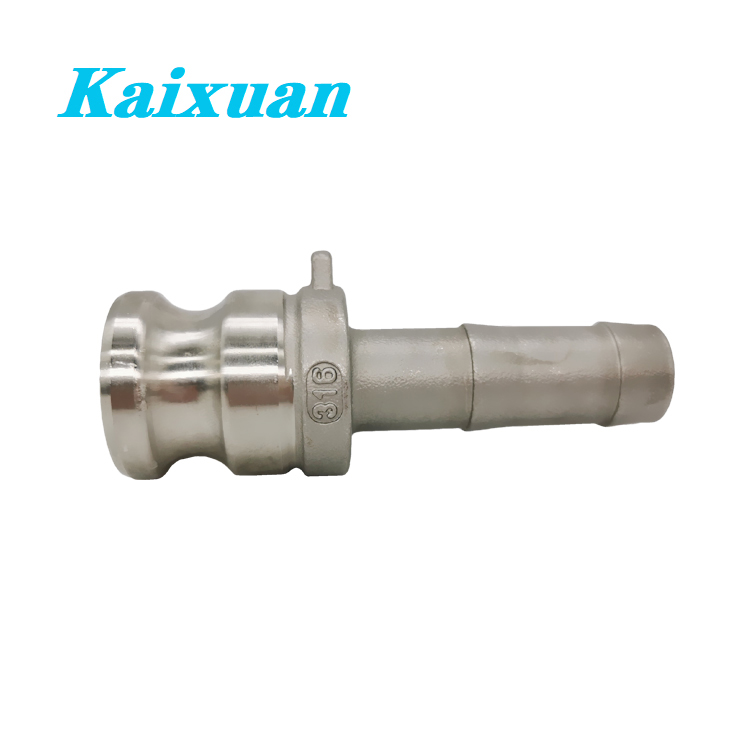

Camlock coupling type E
The camlock fittings provide quick and secure hose connection. The camlock couplings mate by inserting the grooved coupling into the cam coupling and simply closing the cam or lever arms. The cam arms are protected from accidental disconnection by safety pins or locks.
How it works
Connect the camlock coupling by sliding the camlock adapter into the coupling and pressing the cam levers down with normal hand pressure.
Uncoupling is just as easy as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called camlock fittings or quick connect fittings, are used in most industries as a hose connection to avoid leakage. The cam lock type of coupling is popular because it is considered to be a simple and economical way to reconnect and disconnect.
Standard gaskets for stainless steel camlock couplings are black Buna-N. EPDM, Viton, PTFE & Neoprene gaskets are also supplied for higher working pressure. Always make sure the material is compatible with the liquids or powders to be delivered.
Outstanding corrosion resistance,
Much harder than brass camlocks,
Wide operating temperature range,
Longer service life.
The stainless steel camlock coupling is widely used in sanitary or food-related environments & highly corrosive environments.The coupling efficiently prevents contamination in the transport process.
Stainless steel cam locks are ideal for use with salt water, water waste and many chemicals & can also be used with hydraulic oil and coolants.

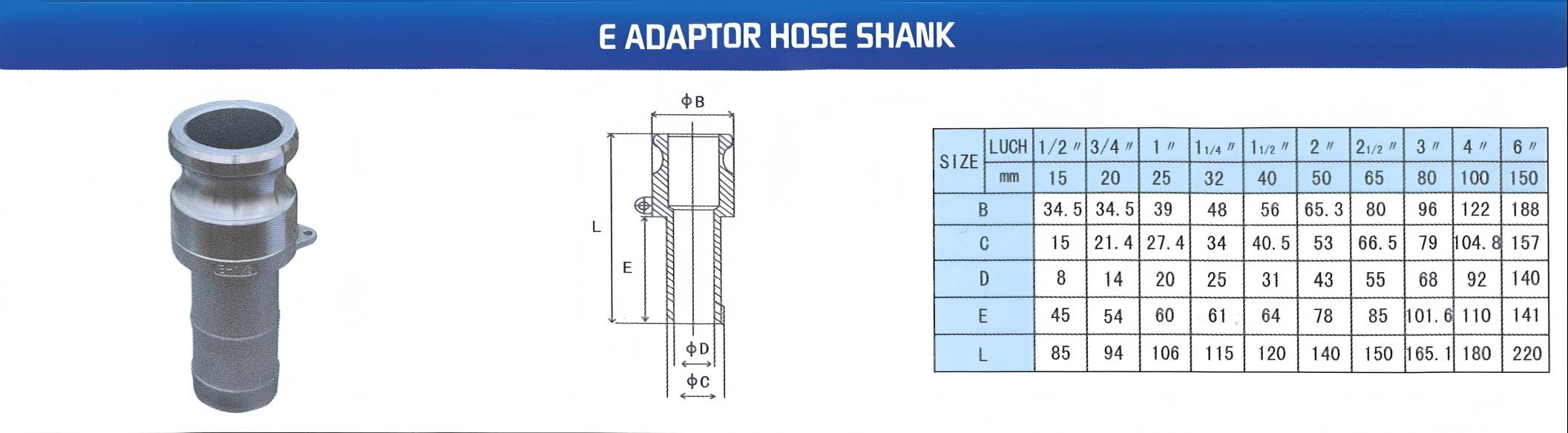

Please see the details below.
- Salt water
- Waste water
- Fuel delivery
- Grain movement
- Water treatment
- Water transport
- Waste / vacuum trucks
- Reverse osmosis systems
- Chemical movement & storage
- Hydraulic oil, coolants, gasoline and petroleum products
Remark: Compressed air, gases or steam are not permitted to be used with stainless steel camlocks.
SIMPLE AND EASY
ORDERING FROM US
Importing for pipe fitting and valves can be confusing when one is not familiar with the transaction process. Here are few simple steps on how to order our pipe fittings & valves.
Samples of customized or regular pipe fittings & valves.
If regular products, samples can be delivered within 7 days.
If it’s customized, we need to design the drawing and make tools to produce samples for 20 days.
Production (60 days)
Customers pay the deposit and we will arrange the production in bulk.
Normally the lead time is about 60 working days.
Shipping (30 days)
There are different shipping ways for options.
Air shipping is very fast but expensive, it’s a good choice for urgent orders, it only takes 7-10 days max.
Sea shipping is the most economical shipping way, time is much longer than air, takes 30 days.
Our team is available to assist you about any questions.
Our experts are easy to reach, responsive, and enthusiastic about their work.
Welcome to contact us today.
MOST FREQUENT QUESTIONS AND ANSWERS
What are the raw material used?
The main materials are SUS304, SUS316, etc.
Can I get a free sample from your company?
Of course, we can provide free samples from 1/8’’-1’’.
Are you a manufacturing or a trading company?
We are a factory, and we offer factory direct prices with excellent quality and worry-free service.
How long does it usually take for me to receive the goods?
Depends on your orders and also depends on the speed of customs clearance and logistics, and the normal delivery time is 60-70 working days.
Any benefits for ball valves and pipe fittings from China?
In a word, China has a much better industry chain. There may be manufactures of valves and fittings in India and Vietnam, etc. But we can guarantee that our prices can be on par with theirs and our quality, service far exceeds your expectations.
Do you provide customized service?
We can design the drawings according to your requirements.
What are your delivery terms?
We offer EXW, FOB, CFR, CIF delivery terms.
Do you have certificates?
We have been certified by reputable certification bodies.
Can I come to China for factory inspection?
Of course, you can come in person or hire a third-party organization to inspect our factory.
What are your payment terms?
T/T, L/C, etc.
