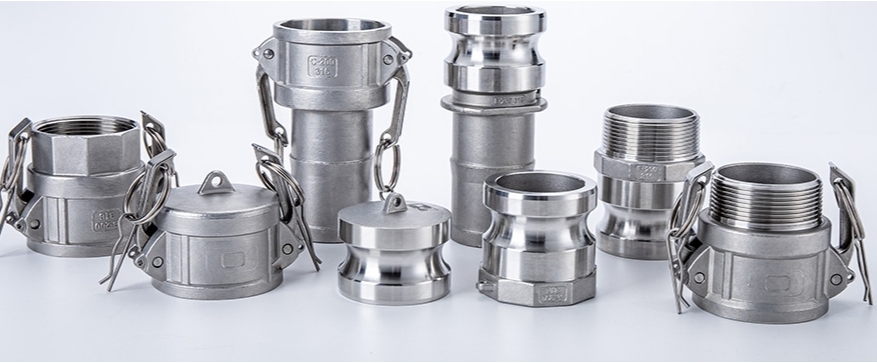

Stainless steel camlock couplings are essential components in industrial fluid transfer systems, offering quick, secure, and leak-proof connections. One of the most critical factors in selecting the right camlock coupling is understanding its working pressure—the maximum pressure the coupling can handle safely without failure.
What is the Working Pressure of Stainless Steel Camlock Couplings?
The working pressure of a camlock coupling refers to the maximum internal pressure it can withstand while maintaining a secure seal. Stainless steel camlock couplings are known for their durability and resistance to corrosion, making them ideal for high-pressure applications in industries like:
- Oil & gas
- Chemical processing
- Water treatment
- Food and beverage
- Marine and firefighting
Typical Pressure Ratings
Stainless steel camlock couplings generally have working pressures ranging from 150 PSI (10.3 bar) to 250 PSI (17.2 bar), depending on:
- Material grade (304 vs. 316 stainless steel)
- Size (smaller couplings often handle higher pressures)
- Design (Type A, B, C, D, etc.)
- For extreme conditions, specialized high-pressure camlock couplings are available with reinforced construction.
Factors Affecting Camlock Coupling Pressure Ratings
Several factors influence how much pressure a stainless steel camlock coupling can handle:
1. Material Strength
304 Stainless Steel: Good for general-purpose use (corrosion-resistant, handles moderate pressure).
316 Stainless Steel: Higher corrosion resistance, better for aggressive chemicals and marine environments.
2. Coupling Size
Smaller sizes (1/2″ to 2″) typically handle higher pressures.
Larger sizes (3″ and above) may have lower pressure ratings due to increased stress on seals.
3. Seal Type
Buna-N (Nitrile) seals: Standard for most applications (good for oils, fuels, water).
Viton seals: Better for high-temperature and chemical-resistant needs.
EPDM seals: Ideal for water, steam, and food-grade applications.
4. Temperature Effects
Higher temperatures can weaken seals and reduce pressure capacity. Always check the manufacturer’s temperature-pressure curve for safe operating limits.
Understanding the working pressure of stainless steel camlock couplings is crucial for safe and efficient fluid transfer operations. By selecting the right material, size, and seal type, you can ensure long-lasting performance in demanding industrial environments.
For high-quality stainless steel camlock couplings with reliable pressure ratings, consult us to meet your specific needs.
